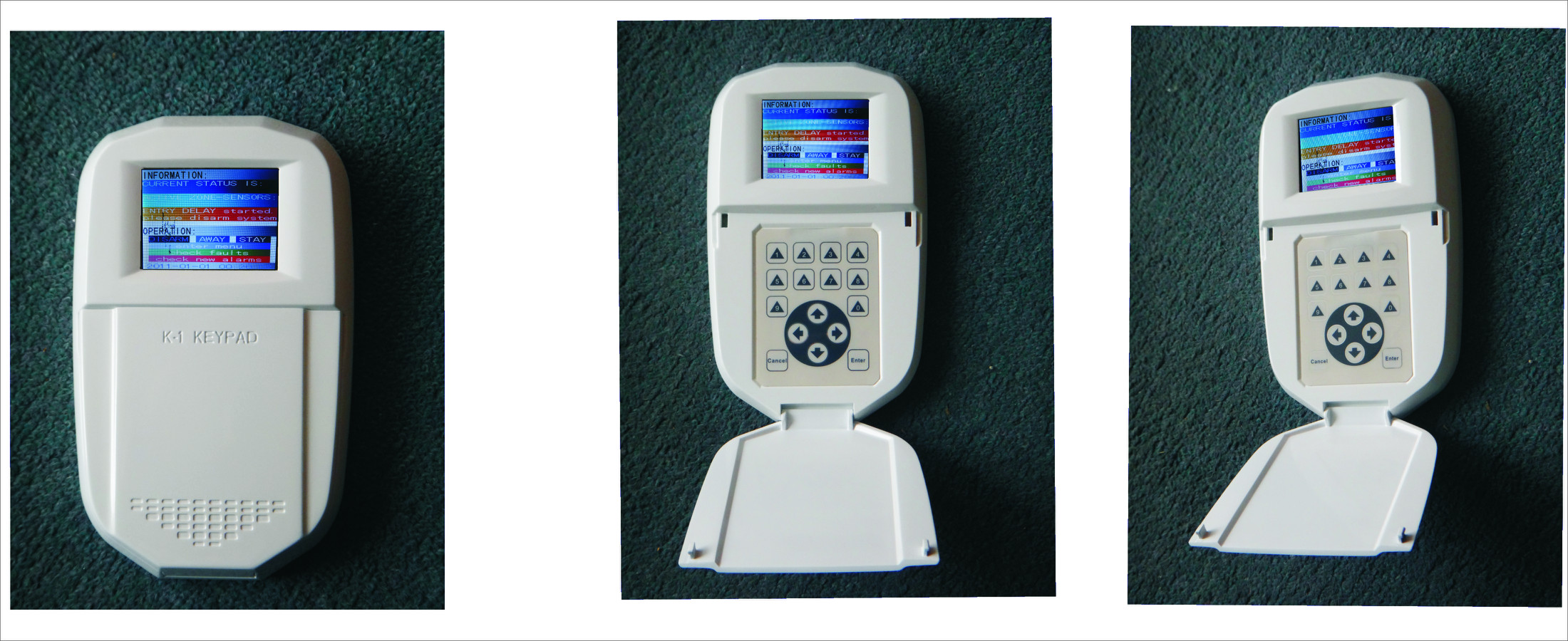

This is an input and display device of your home security system. It should be linked with the control of your security system.
This device is for indoor use when the temperature is well maintained.
The K-1 is designed to be used only with Cuneatic security control. Linking it with devices from other makers may cause damage.
SPECIFICATION
Environmental class: 1(indoor only)
Wires: total 7 wires.
DC 12V, ground.
1 reserved wire.
Two pairs of 485 communication wires.
Dimension: 110mm(W), 176mm(H), 20mm(T)
Weight: 155g (without battery)
Current consumption: 33 microamp Working voltage: DC 12V
CHOOSE A PROPER PLACE
Usually, the K-1 is installed on the wall, at a height of 1.5-1.7 meters.
You can install it at the entrance (indoor side) of your home, or at any other places you want.
Meanwhile, the K-1 must receive power and data from the security control, so K-1 should be installed with 100 meters from the control. The protocol between the control and the K-1 is 485. Our standard pack includes connecting wires. If the wires are too short for you, you can buy the extension wires from us, or from your local market.
current security status
active zone
remind the user to disarm the system during entry delay
three buttons: DISARM, AWAY, STAY
new alarm notices
fault notices
zone management
user management
setting
records
IMPORTANT NOTICE:
THE FUNCTIONS OF YOUR SECURITY SYSTEM DEPEND ON THE SYSTEM CONTROL, NOT THE KEYPAD. THE KEYPAD IS JUST A INPUT/DISPLAY DEVICE. THE KEYPAD LISTS ALL POSSIBLE FUNCTIONS, BUT IF YOUR CONTROL JUST SUPPORTS PARTS OF ALL THE FUNCTIONS, YOU CAN ONLY SEE BUT CAN NOT USE THE OTHER FUNCTIONS.
|
|
|
