R75 series are advanced models among the control panels of wireless home security systems. With more functions, R75 series satisfy user's needs by integrating latest wireless and information technology. The difference between R75-V and R75-N is their reporting modes – report to the monitoring center or to the user telephones.
When an alarm occurs, R75-N reports to the monitoring center, and sends the alarm message in Contact ID format. The whole data-exchange usually last only seconds.

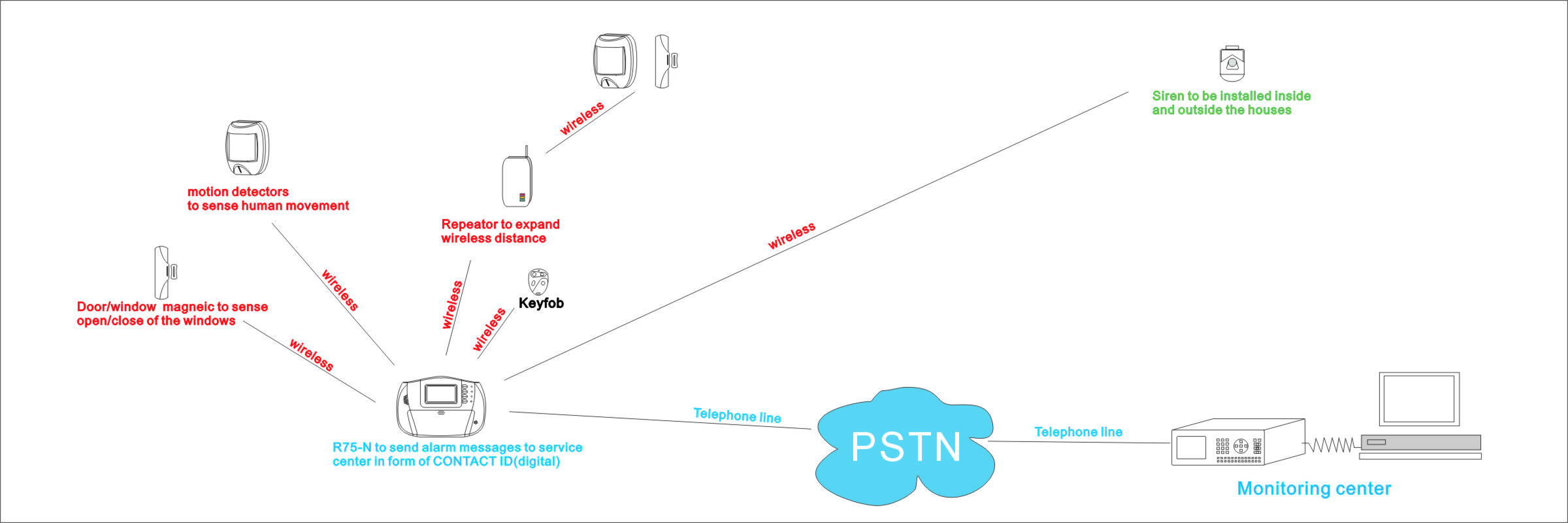

The illustration is as following:
The R75 is the control and indicating equipment (CIE) of the wireless security system.
Working together with various detectors, the R75 provides the following protections:
Intrusion protection (with motion detectors, door/window magnet contacts)
Fire protection (with smoke detectors)
Gas protection (with gas detectors)
Emergency protection (with emergency buttons)
Meanwhile, R75 also provides the following additional functions:
Tamper detection (detection of illegally opening the covers)
Password attempting prevention
Fault detection (detection of power fault, battery low-power, telephone line cut)
Supervising the wireless detectors, buttons, and sirens.
Remote controlling (keyfob and remote access by telephone(R75-V only))
Event recording
User management (add/delete users)

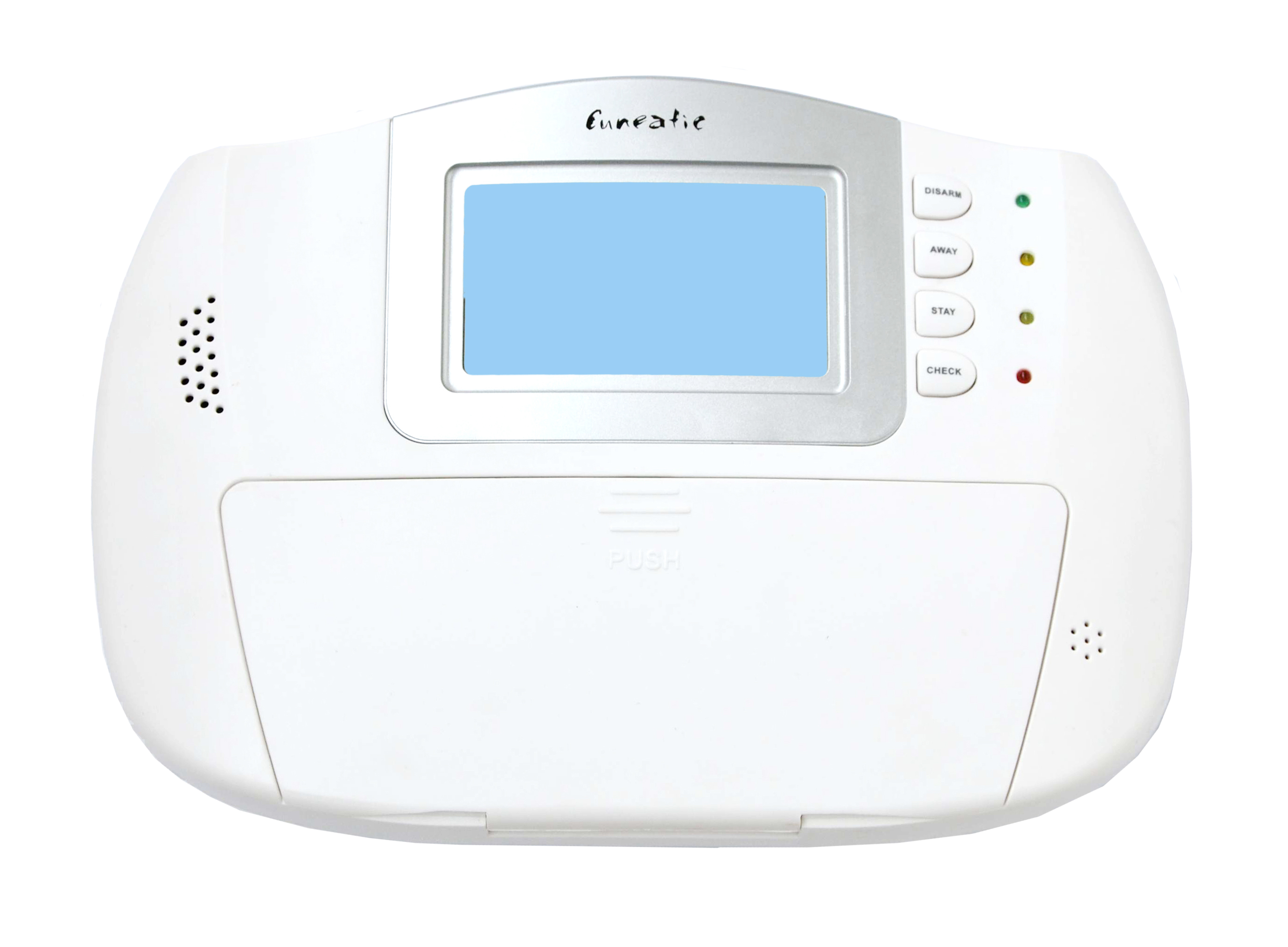

Integrated in R75-N:
control, indicating equipment,
80x50mm blue LCD,

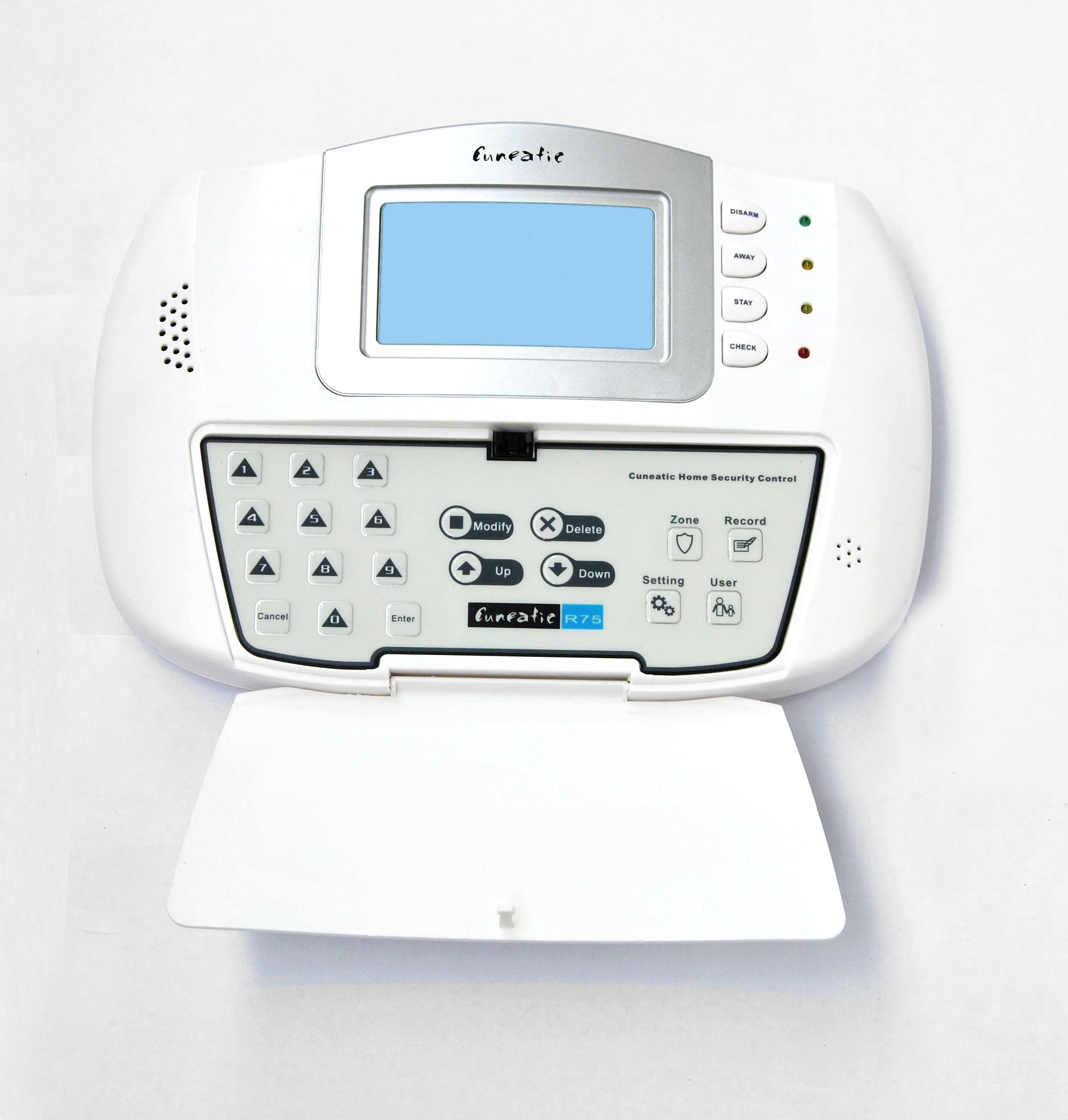

color membrane switch keypad as user input interface,
color LED as instruction,
back-up battery,
alarm transmission equipment,
mic and speaker,
storage device.
Operation mode: 3 modes. Stay, Away, and Disarm.
Zones: 19 burglar-proof zones, up to 95 wireless detectors
1 fire detection zone, up to 5 wireless detectors
1 hazardous gas detection zone, up to 5 wireless detectors
1 24-hour zone, up to 5 wireless detectors
1 emergency zone, up to 5 wireless emergency buttons
1 siren zone, up to 2 wireless sirens
Wireless frequency: 868Mhz/915Mhz FSK. 2-way wireless
User number: up to 9 different users
up to 9 wireless keys
Event record: alarm record, fault record, arm/disarm record, and data change record
Total 125 pieces
Notice: fault notices, and new alarm notices
Personal setting: 3 monitoring center numbers, 3 account numbers, fire/burglar/arming/periodic reporting options, entry/exit delay times… total 28 adjustable parameters
Operation instruction: LCD
Access level management: 2 levels
Standard: DD CLC/TS 50131-3: 2003
EN50131-5-3: 2005
Security grade: 2
Environmental class: 1(Indoor)
Power input: 9VAC 50/60Hz 500mA
Dimension: 244x167x45 (mm)
Weight: 620g(with batteries), 530g(without batteries)
Operating temperature range: 10℃- 40℃
Maximum current consumption (with an alarm condition, inside siren sounding): 210mA
Quiescent current consumption (without an alarm condition): 95mA
Technical Features
A: Wireless and Easy to install
All detectors, contacts, and hold-up buttons are wireless. Users can enroll new devices, delete any existing one, or move the devices to a new place easily.
Just following the Guide, users can install the system by themselves, and set R75-N to meet their needs.
If a device does not work well, R75-N will give detailed message automatically, thus the maintenance becomes very easy.
B: Easy maintenance
After joining a working net, R75-N can achieve advanced self-checking functions.
Cuneatic's whole system self-check function is to ensure that the important parts of a security system are working properly. It lets users and the service person know status of the system, and it also generates false reports when the parts, such as detector or R75-N itself, work improperly.
For example, if a detector has fault, R75-N will notice the user. If the user can not solve that problem, the central station will generate a report and a service engineer will go to help the user.
